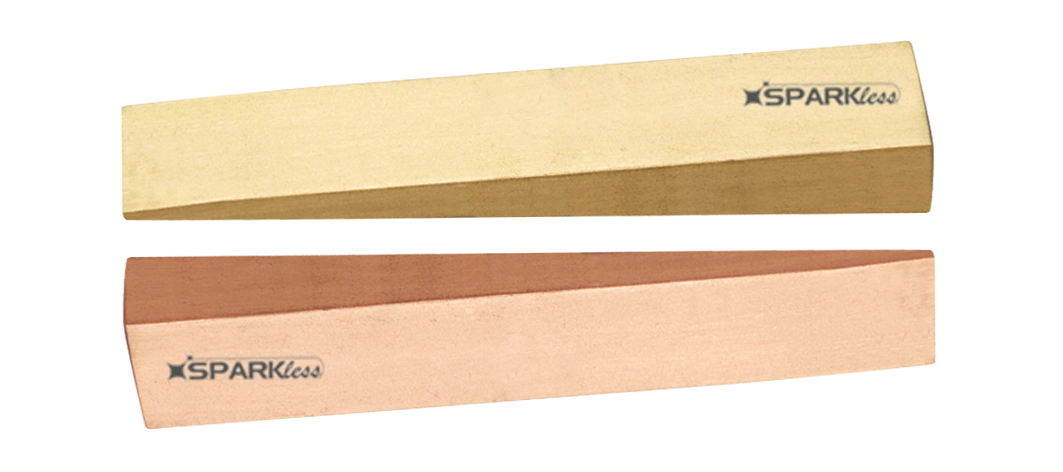

Non Sparking Flange Wedge

Non Sparking Flange Wedge

Our Non-Sparking Flange Wedge is the best alternative to regular tools and finds application in potentially explosive environments.

Non-Sparking Tools are mandatory in any environment where an ignition source can result in a fire or explosion.

Our tools are tested and comply with IS 4595 standard for non-sparking properties.

  • Non-sparking
  • Good Hardness
  • Corrosion Resistant
  • Good Conductivity
  • High Strenght
  • Non-Magnetic

GET THE QUOTE




Item Name P/N L mm B mm H mm
Flange Wedge SWE-1002 80 13 6
Flange Wedge SWE-1004 100 50 10
Flange Wedge SWE-1006 135 50 18
Flange Wedge SWE-1008 150 40 8
Flange Wedge SWE-1010 150 25 8
Flange Wedge SWE-1012 150 25 13
Flange Wedge SWE-1014 150 50 13
Flange Wedge SWE-1016 180 32 13
Flange Wedge SWE-1018 180 50 19
Flange Wedge SWE-1020 200 20 30
Flange Wedge SWE-1022 200 30 30
Flange Wedge SWE-1024 200 40 40
Flange Wedge SWE-1026 200 50 12
Flange Wedge SWE-1028 230 40 20
Flange Wedge SWE-1030 250 40 30
Flange Wedge SWE-1032 300 50 40

We offer 2 kinds of materials for non-sparking tools,
Copper-Beryllium alloy (Be-Cu) and Aluminium-Bronze (Al-Br) alloy:

COPPER-BERYLLIUM ALLOY ALUMINIUM-BRONZE ALLOY
Composition Be: 1.8%-2%
Ni+Co: 0.2%-1.2%
Others: <0.5%
Rest: Cu
Composition Al: 10%-12%
Ni: 4 % – 6 %
Fe+Mn: <5.8 %
Others: <0.5%
Rest: Cu
Hardness 283-365 Brinell Hardness 229-291 Brinell
Tensile
Strength
~1250 N/mm2 Tensile
Strength
~800 N/mm2
