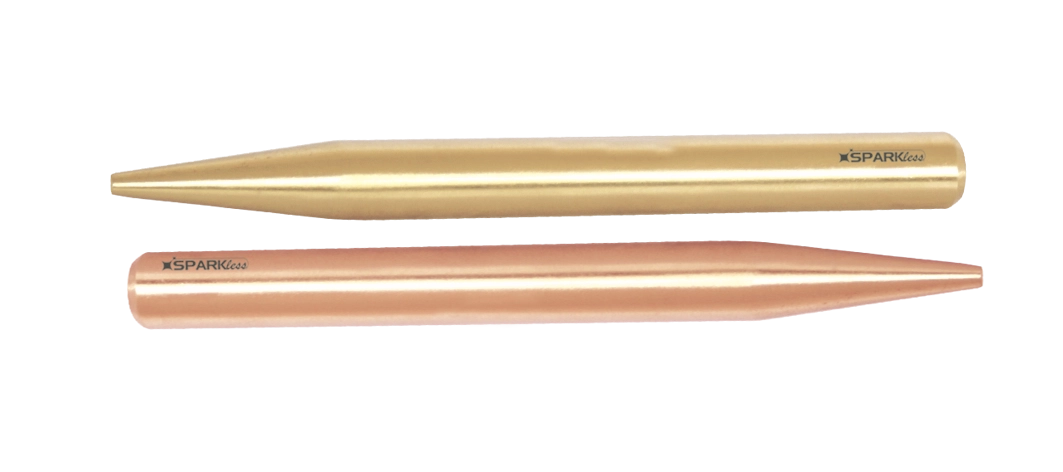

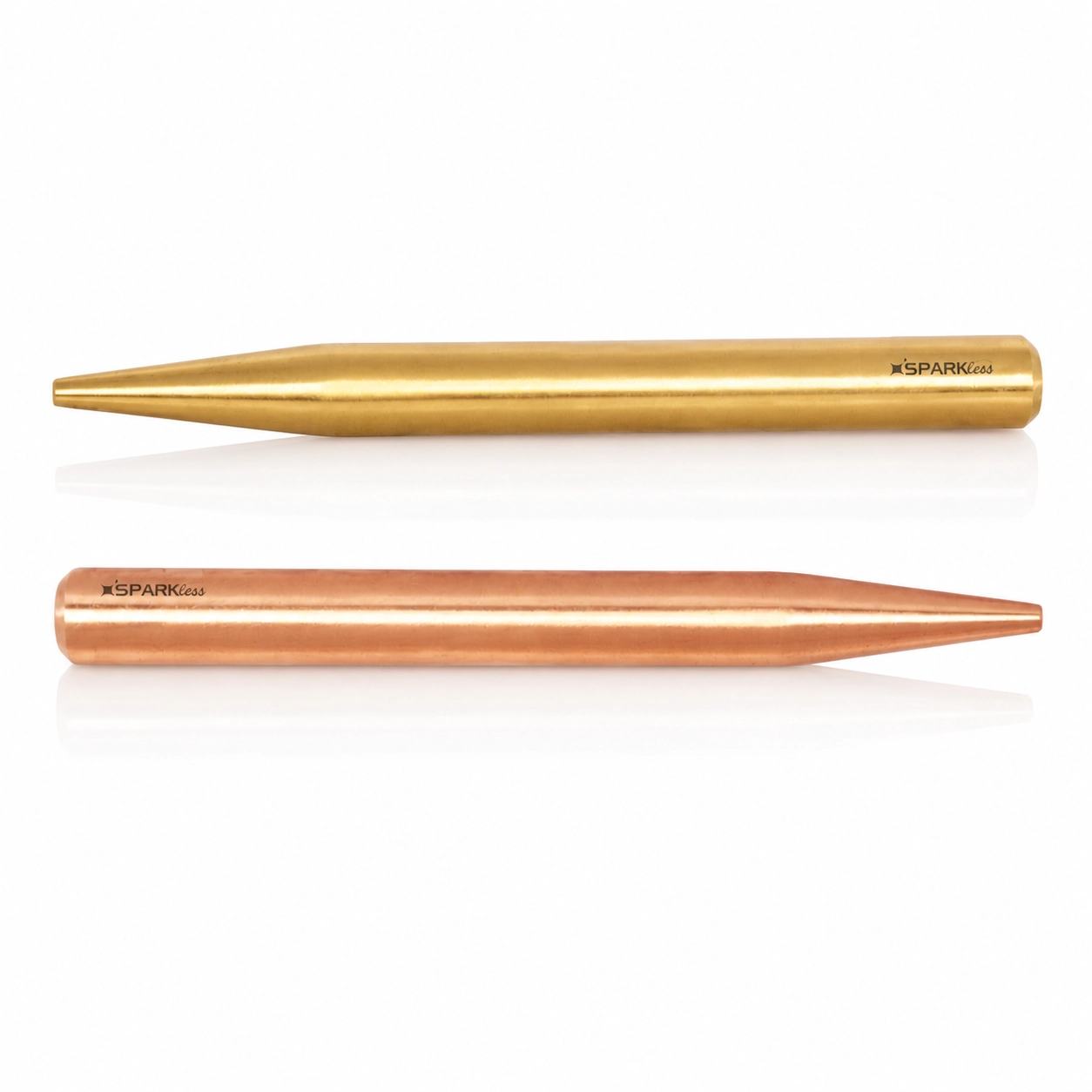

Non Sparking Punch

Non Sparking Punch

Our Non-Sparking Punch is the best alternative to regular tools and finds application in potentially explosive environments.

Non-Sparking Tools are mandatory in any environment where an ignition source can result in a fire or explosion.

Our tools are tested and comply with IS 4595 standard for non-sparking properties.

  • Non-sparking
  • Good Hardness
  • Corrosion Resistant
  • Good Conductivity
  • High Strenght
  • Non-Magnetic

GET THE QUOTE




Item Name P/N f mm f1 mm L mm
Punch SVCC-1002 5 11 150
Punch SVCC-1004 6 12 150
Punch SVCC-1006 7 13 150
Punch SVCC-1008 8 14 150

We offer 2 kinds of materials for non-sparking tools,
Copper-Beryllium alloy (Be-Cu) and Aluminium-Bronze (Al-Br) alloy:

COPPER-BERYLLIUM ALLOY ALUMINIUM-BRONZE ALLOY
Composition Be: 1.8%-2%
Ni+Co: 0.2%-1.2%
Others: <0.5%
Rest: Cu
Composition Al: 10%-12%
Ni: 4 % – 6 %
Fe+Mn: <5.8 %
Others: <0.5%
Rest: Cu
Hardness 283-365 Brinell Hardness 229-291 Brinell
Tensile
Strength
~1250 N/mm2 Tensile
Strength
~800 N/mm2
